Development custom BarsType

To create a new BarsType a developer should create couple of classes:

First class should be inherited from GeneratedBarsPeriod class. This class defines different parameters for bars creation, for example Period, Size etc. Once class is created a developer must override a property Name to set a name for period.

 public class TestBarsTypePeriod : GeneratedBarsPeriod
{
            [Display(GroupName = nameof(Resource.ScriptDataSeries), Name = nameof(Resource.BarsPeriodTypeNameRange), Order = 2, ResourceType = typeof(Resource))]
            [Range(1, int.MaxValue)]
            public int TestRange { get; set; } = 2;

            protected override string Name => "Test Bars type";
 }

Second class should be inherited from GeneratedBarsType<T> class where T is a BarsPeriod class created on the first step. This class defines rules for bars creation. Once class is created a developer must override a method CreateBuilder in which a developer should implement logic of bars building.

internal class TestBarsType:GeneratedBarsType<TestBarsTypePeriod>
{
        #region Overrides of BarsTypeBase

        /// <inheritdoc />
        public override BarsBuilder CreateBuilder(IBarStorage barStorage, TradingHours? tradingHours = null)
        {
            //Write your code here
        }

        #endregion
}

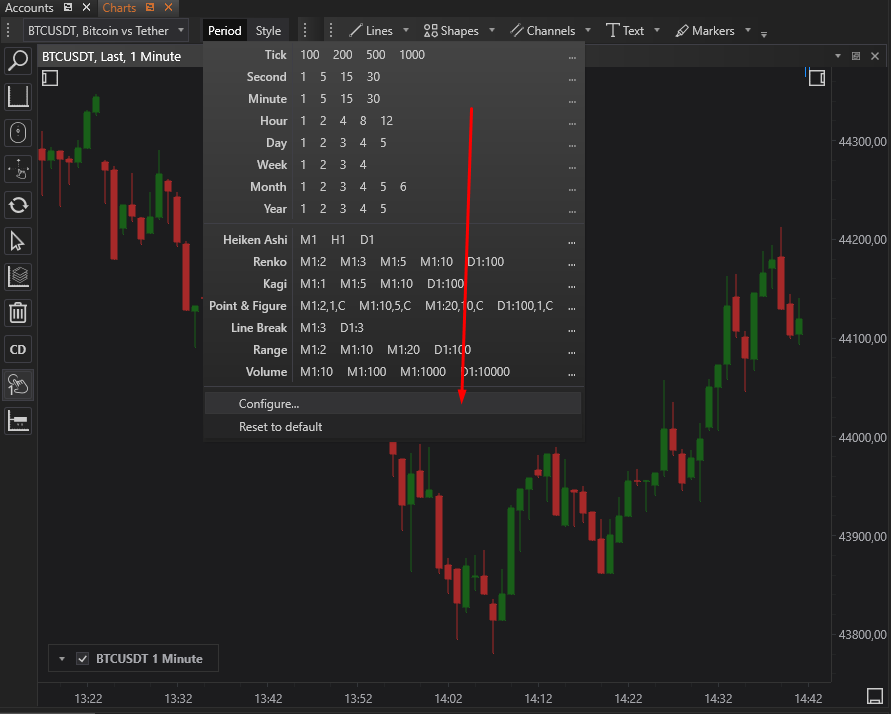

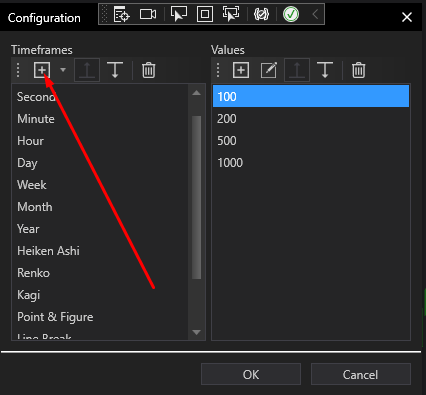

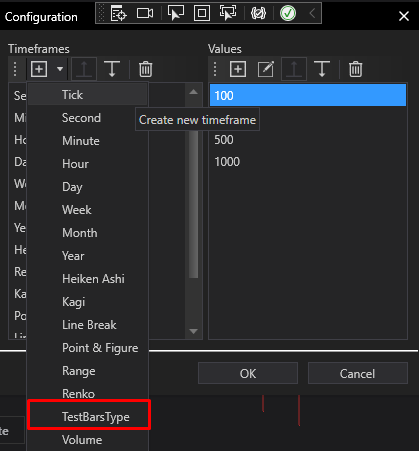

Once new BarsType is developed one can use it on a chart.
